A42 型防尘圈
标准材料：聚氨酯 AU92
应用范围：液压、气动往复运动环境。
说明：
A42型防尘圈被安装在液压缸内作轴向运动的活塞杆和柱塞上。当活塞杆或柱塞运动时，灰尘能进入液压缸内，从而引起密封圈、导向环和支承圈损伤和过早的磨损。A42型防尘圈能有效防止灰尘进入液压缸。
作用：
A42型防尘圈是一种单向作用的防尘圈。当活塞杆向里运动时压在活塞杆上的防尘圈的唇口将杆表面的脏污刮去，对密封件和密封配件及介质起保护作用。A42型防尘圈利用了径向的压力来除去颗粒、灰尘和水。沟槽外部的压力能形成静密封。聚氨酯材料的高耐磨性使A42型防尘圈的使用寿命很长。
优点：-良好的刮尘作用-设计紧凑-沟槽设计简单-安装和拆卸简便-价格便宜-轻微的旋转和摆动不影响工作性能
安装：A42型防尘圈安装于半闭合的沟槽中。
介质：矿物油、油脂和难燃液等。
使用条件：温度：-40℃～+100℃ 运动速度：≤2 m / s
订货示例:
A42 -4x12 x3 /AU92
型号 内径 外径 沟槽宽度 标准材料

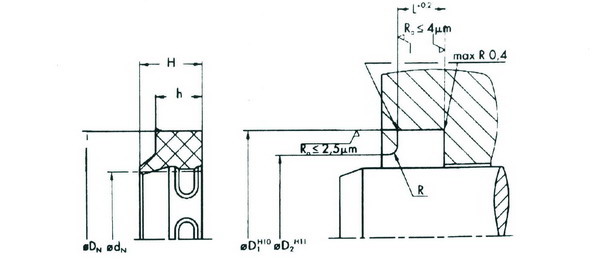

安装实例：
.jpg)
标准尺寸表：
|
订货号
|
¯ d N
|
¯ D N
|
h
|
H
|
¯ D 1
|
¯ D 2
|
L
|
|
A42-4x12x3
|
4
|
12
|
2.7
|
4
|
12
|
9
|
3
|
|
A42-5x12x2.8
|
5
|
12
|
2.5
|
4
|
12
|
9
|
2.8
|
|
A42-6x12x3
|
6
|
12
|
2.7
|
4
|
12
|
9
|
3
|
|
A42-8x14x3.8
|
8
|
14
|
3.5
|
4.5
|
14.6
|
11
|
3.8
|
|
A42-9x13x2.5
|
9
|
13
|
2.2
|
3.5
|
13
|
12
|
2.5
|
|
A42-10x16x3.8
|
10
|
16
|
3.5
|
5
|
16.6
|
13
|
3.8
|
|
A42-12x18x3.8
|
12
|
18
|
3.5
|
5
|
18.6
|
15
|
3.8
|
|
A42-14x20x3.8
|
14
|
20
|
3.5
|
5
|
20.6
|
17
|
3.8
|
|
A42-15x21x3.8
|
15
|
21
|
3.5
|
5
|
21.6
|
18
|
3.8
|
|
A42-16x22x3
|
16
|
22
|
2.8
|
4
|
22.6
|
19
|
3
|
|
A42-16x22x3.8
|
16
|
22
|
3.5
|
5
|
22.6
|
19
|
3.8
|
|
A42-16x24x5.3
|
16
|
24
|
5
|
7
|
24.6
|
19
|
5.3
|
|
A42-18x24x3.8
|
18
|
24
|
3.5
|
5
|
24.6
|
21
|
3.8
|
|
A42-18x26x5.3
|
18
|
26
|
5
|
7
|
26.6
|
21
|
5.3
|
|
A42-20x26x3.4
|
20
|
26
|
3.1
|
4.5
|
26
|
23
|
3.4
|
|
A42-20x28x5.3
|
20
|
28
|
5
|
7
|
28.6
|
23
|
5.3
|
|
A42-22x30x5.3
|
22
|
30
|
5
|
7
|
30.6
|
25
|
5.3
|
|
A42-24x32x5.3
|
24
|
32
|
5
|
7
|
32.6
|
27
|
5.3
|
|
A42-25x33x5.3
|
25
|
33
|
5
|
7
|
33.6
|
28
|
5.3
|
|
A42-28x36x5.3
|
28
|
36
|
5
|
7
|
36.6
|
31
|
5.3
|
|
A42-30x38x5.3
|
30
|
38
|
5
|
7
|
38.6
|
33
|
5.3
|
|
A42-30x40x3
|
30
|
40
|
2.8
|
4
|
40
|
34.5
|
3
|
|
A42-32x40x3.8
|
32
|
40
|
3.5
|
5
|
40
|
35
|
3.8
|
|
A42-32x40x5.3
|
32
|
40
|
5
|
7
|
40.6
|
35
|
5.3
|
|
A42-32x42x3.8
|
32
|
42
|
4
|
6
|
42
|
35
|
4.2
|
|
A42-35x40x3.8
|
35
|
40
|
3.5
|
5
|
40
|
38
|
3.8
|
|
A42-35x43x5.3
|
35
|
43
|
5
|
7
|
43.6
|
38
|
5.3
|
|
A42-35x45x4
|
35
|
45
|
3.8
|
6
|
45
|
39
|
4
|
|
A42-36x44x5.3
|
36
|
44
|
5
|
7
|
44.6
|
39
|
5.3
|
|
A42-38x46x5.3
|
38
|
46
|
5
|
7
|
46.6
|
41
|
5.3
|
|
A42-38x48x4.8
|
38
|
48
|
4.5
|
7
|
48.6
|
41
|
4.8
|
|
A42-40x48x4.2
|
40
|
48
|
4
|
6
|
48
|
43
|
4.2
|
|
A42-40x48x5.3
|
40
|
48
|
5
|
7
|
48.6
|
43
|
5.3
|
标准尺寸表：
|
订货号
|
¯dN
|
¯DN
|
h
|
H
|
¯D1
|
¯D2
|
L
|
|
A42-42x50x5.3
|
42
|
50
|
5
|
7
|
50.6
|
45
|
5.3
|
|
A42-45x53x5.3
|
45
|
53
|
5
|
7
|
53.6
|
48
|
5.3
|
|
A42-45x55x5.3
|
45
|
55
|
5
|
7
|
55.6
|
48
|
5.3
|
|
A42-45x60x4.2
|
45
|
60
|
4
|
6
|
60
|
53
|
4.2
|
|
A42-46x54x5.3
|
46
|
54
|
5
|
7
|
54.6
|
49
|
5.3
|
|
A42-50x58x5.3
|
50
|
58
|
5
|
7
|
58.6
|
53
|
5.3
|
|
A42-50x60x5.3
|
50
|
60
|
5
|
7
|
60.6
|
53
|
5.3
|
|
A42-50x65x4.2
|
50
|
65
|
4
|
6
|
65.6
|
53
|
4.2
|
|
A42-53x61x5.3
|
53
|
61
|
5
|
7
|
61.6
|
56
|
5.3
|
|
A42-55x63x5.3
|
55
|
63
|
5
|
7
|
63.6
|
58
|
5.3
|
|
A42-55x65x5.3
|
55
|
65
|
5
|
7
|
65.6
|
58
|
5.3
|
|
A42-56x64x5.3
|
56
|
64
|
5
|
7
|
64.6
|
59
|
5.3
|
|
A42-56x66x5.3
|
56
|
66
|
5
|
7
|
66.6
|
59
|
5.3
|
|
A42-60x68x5.3
|
60
|
68
|
5
|
7
|
68.6
|
63
|
5.3
|
|
A42-60x70x5.3
|
60
|
70
|
5
|
7
|
70.6
|
63
|
5.3
|
|
A42-60x70x5.5
|
60
|
70
|
5.2
|
7
|
70.6
|
66.5
|
5.5
|
|
A42-61x67x5.3
|
61
|
67
|
5
|
7
|
67.6
|
64
|
5.3
|
|
A42-63x71x5.3
|
63
|
71
|
5
|
7
|
71.6
|
66
|
5.3
|
|
A42-63x73x5.3
|
63
|
73
|
5
|
7
|
73.6
|
66
|
5.3
|
|
A42-65x73x5.3
|
65
|
73
|
5
|
7
|
73.6
|
68
|
5.3
|
|
A42-65x75x5.3
|
65
|
75
|
5
|
7
|
75.6
|
68
|
5.3
|
|
A42-65x76x6
|
65
|
76
|
5.8
|
7
|
76.6
|
71.5
|
6
|
|
A42-67x76x5.5
|
67
|
76
|
5.2
|
7
|
76.6
|
71
|
5.5
|
|
A42-70x78x5.3
|
70
|
78
|
5
|
7
|
78.6
|
73
|
5.3
|
|
A42-70x80x5.3
|
70
|
80
|
5
|
7
|
80.6
|
73
|
5.3
|
|
A42-70x82x7.1
|
70
|
82
|
7
|
12
|
82.6
|
76
|
7.1
|
|
A42-73x81x5.3
|
73
|
81
|
5
|
7
|
81.6
|
76
|
5.3
|
|
A42-73x83x7.1
|
73
|
83
|
7
|
12
|
83.6
|
76
|
7.1
|
|
A42-75x83x5.3
|
75
|
83
|
5
|
7
|
83.6
|
78
|
5.3
|
|
A42-75x87x7.2
|
75
|
87
|
7
|
12
|
87.2
|
81
|
7.2
|
|
A42-76x82x5.3
|
76
|
82
|
5
|
7
|
86.6
|
81
|
5.3
|
|
A42-78x86x5.3
|
78
|
86
|
5
|
7
|
86.6
|
81
|
5.3
|
|
A42-78x88x5.5
|
78
|
88
|
5.2
|
7
|
88.6
|
84.5
|
5.5
|
|
A42-78x92x7.1
|
78
|
92
|
7
|
12
|
92.2
|
85
|
7.1
|
|
A42-80x88x5.3
|
80
|
88
|
5
|
7
|
88.6
|
83
|
5.3
|
|
A42-80x92x7.2
|
80
|
92
|
7
|
12
|
92.2
|
86
|
7.2
|
|
A42-85x93x5.3
|
85
|
93
|
5
|
7
|
93.6
|
88
|
5.3
|
|
A42-85x97x7.2
|
85
|
97
|
7
|
12
|
97.2
|
91
|
7.2
|
|
A42-90x102x6
|
90
|
102
|
5.8
|
8
|
102.2
|
94
|
6
|
|
A42-90x102x7.2
|
90
|
102
|
7
|
12
|
102.2
|
96
|
7.2
|
|
A42-91x97x5.3
|
91
|
97
|
5
|
7
|
97.6
|
94
|
5.3
|
|
A42-92x103x5.5
|
92
|
103
|
5.2
|
7
|
103.6
|
97
|
5.5
|
|
A42-93x101x5
|
93
|
101
|
4.7
|
7
|
101
|
96
|
5
|
|
A42-95x107x7.1
|
95
|
107
|
7
|
12
|
107.2
|
101
|
7.1
|
|
A42-97x105x5
|
97
|
105
|
4.7
|
7
|
105
|
100
|
5
|
|
A42-99x109x5.5
|
99
|
109
|
5.2
|
7
|
109.6
|
105.5
|
5.5
|
|
A42-100x112x6
|
100
|
112
|
5.8
|
8
|
112.2
|
104
|
6
|
标准尺寸表：
|
订货号
|
¯dN
|
¯DN
|
h
|
H
|
¯D1
|
¯D2
|
L
|
|
A42-100x112x7.2
|
100
|
112
|
7
|
12
|
112.2
|
106
|
7.2
|
|
A42-105x117x7.2
|
105
|
117
|
7
|
12
|
117.2
|
111
|
7.2
|
|
A42-107x113x5.3
|
107
|
113
|
5
|
7
|
113.6
|
110
|
5.3
|
|
A42-110x122x7.2
|
110
|
122
|
7
|
12
|
122.2
|
116
|
7.2
|
|
A42-112x124x7.1
|
112
|
124
|
7
|
12
|
124.2
|
118
|
7.1
|
|
A42-115x127x7.2
|
115
|
127
|
7
|
12
|
127.2
|
121
|
7.2
|
|
A42-118x126x5
|
118
|
126
|
4.7
|
7
|
126
|
121
|
5
|
|
A42-120x130x5.5
|
120
|
130
|
5.2
|
7
|
130.6
|
126.5
|
5.5
|
|
A42-120x132x7.2
|
120
|
132
|
7
|
12
|
132.2
|
126
|
7.2
|
|
A42-125x137x7.1
|
125
|
137
|
7
|
12
|
137.2
|
131
|
7.1
|
|
A42-125x140x10.2
|
125
|
140
|
10
|
16
|
140
|
132.6
|
10.2
|
|
A42-128x140x7.1
|
128
|
140
|
7
|
12
|
140.2
|
134
|
7.1
|
|
A42-130x142x7.1
|
130
|
142
|
7
|
12
|
142.2
|
136
|
7.1
|
|
A42-135x147x7.1
|
135
|
147
|
7
|
12
|
147.2
|
141
|
7.1
|
|
A42-140x148x7.1
|
140
|
148
|
5.8
|
7
|
148.6
|
143
|
6
|
|
A42-140x152x7.1
|
140
|
152
|
7
|
12
|
152.2
|
146
|
7.1
|
|
A42-140x155x9
|
140
|
155
|
8.7
|
15
|
155
|
147.5
|
9
|
|
A42-140x155x10.2
|
140
|
155
|
10
|
16
|
155
|
147.6
|
10.2
|
|
A42-141x151x5.5
|
141
|
151
|
5.2
|
7
|
151.6
|
147.5
|
5.5
|
|
A42-143x151x5.5
|
143
|
151
|
5.2
|
7
|
151
|
146
|
5.5
|
|
A42-145x157x7.1
|
145
|
157
|
7
|
12
|
157.2
|
151
|
7.1
|
|
A42-150x162x7.1
|
150
|
162
|
7
|
12
|
162.2
|
156
|
7.1
|
|
A42-150x165x7.5
|
150
|
165
|
7.2
|
12
|
165
|
156
|
7.5
|
|
A42-150x165x10.2
|
150
|
165
|
10
|
16
|
165
|
157.6
|
10.2
|
|
A42-160x172x7.1
|
160
|
172
|
7
|
12
|
172.2
|
166
|
7.1
|
|
A42-160x175x9
|
160
|
175
|
8.7
|
15
|
175
|
167
|
9
|
|
A42-160x175x10.2
|
160
|
175
|
10
|
16
|
175
|
167.6
|
10.2
|
|
A42-162x172x5.5
|
162
|
172
|
5.2
|
7
|
172.6
|
168
|
5.5
|
|
A42-170x185x5.3
|
170
|
178
|
5
|
7
|
178.6
|
173
|
5.3
|
|
A42-170x185x10.1
|
170
|
185
|
10
|
16
|
185.2
|
178
|
10.1
|
|
A42-180x195x10.1
|
180
|
195
|
10
|
16
|
195.2
|
188
|
10.1
|
|
A42-180x200x7.1
|
180
|
200
|
7
|
12
|
200.2
|
188
|
7.1
|
|
A42-180x200x10.2
|
180
|
200
|
10
|
18
|
200
|
190
|
10.2
|
|
A42-183x193x5.5
|
183
|
193
|
5.2
|
7
|
193.6
|
189
|
5.5
|
|
A42-190x205x10.1
|
190
|
205
|
10
|
18
|
205.2
|
198
|
10.1
|
|
A42-190x210x10.2
|
190
|
210
|
10
|
18
|
210
|
200
|
10.2
|
|
A42-200x215x10.1
|
200
|
215
|
10
|
16
|
215.2
|
208
|
10.1
|
|
A42-200x220x10.2
|
200
|
220
|
10
|
18
|
220
|
210
|
10.2
|
|
A42-205x213x5.3
|
205
|
213
|
5
|
7
|
213.6
|
208
|
5.3
|
|
A42-210x225x10.2
|
210
|
225
|
10
|
16
|
225.2
|
218
|
10.1
|
|
A42-220x235x10.2
|
220
|
235
|
10
|
16
|
235
|
227.6
|
10.2
|
|
A42-230x245x10.1
|
230
|
245
|
10
|
16
|
245.2
|
238
|
10.1
|
|
A42-240x255x10.1
|
240
|
255
|
10
|
16
|
255.2
|
248
|
10.1
|
|
A42-250x265x10.2
|
250
|
265
|
10
|
16
|
265.2
|
258
|
10.2
|
|
A42-257x267x5.5
|
257
|
267
|
5.2
|
7
|
267.6
|
264
|
5.5
|
|
A42-280x300x10.2
|
280
|
300
|
10
|
18
|
300
|
290
|
10.2
|
|
A42-300x320x10.2
|
300
|
320
|
10
|
18
|
320
|
310
|
10.2
|
|
