| 二.DAS〈 A类〉尺寸数据 |
|
表面光洁度要求：
接触表面:Ra≤0.3um
沟槽底面:Ra≤1.8um
构槽侧面:Ra≤3um |
 |
|

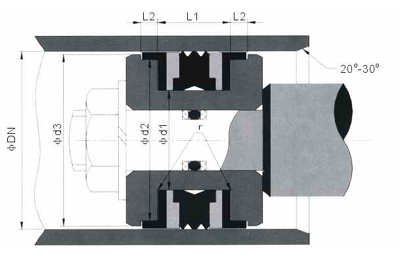

| 訂货瓷料 （单位：mm） |
| 内孔直径 |
沟槽尺寸 |
B+S订货型号 |
参考型号 |
| DN H9 |
d1 h9 |
d2 h9 |
L1+0.2 |
d3 h11 |
L2+0.1 |
r max |
| 32.00 |
24.00 |
28.00 |
15.50 |
31.40 |
3.20 |
0.30 |
PCA200320-NCRO |
DAS 32 24 |
| 40.00 |
32.00 |
36.00 |
15.50 |
39.40 |
3.20 |
0.30 |
PCA400400-NCRO |
DAS 40 32 |
| 50.00 |
38.00 |
46.00 |
20.50 |
49.40 |
4.20 |
0.30 |
PCA200500-NCRO |
DAS 50 38 |
| 60.00 |
48.00 |
56.00 |
20.50 |
59.40 |
4.20 |
0.30 |
PCA200600-NCRO |
DAS 60 48 |
| 63.00 |
51.00 |
59.00 |
20.50 |
63.40 |
4.20 |
0.30 |
PCA300630-NCRO |
DAS 63 51 |
| 70.00 |
58.00 |
66.00 |
20.50 |
69.40 |
4.20 |
0.30 |
PCA200700-NCRO |
DAS 70 58 |
| 80.00 |
66.00 |
76.00 |
22.50 |
79.40 |
5.20 |
0.30 |
PCA200800-NCRO |
DAS 80 66 |
| 90.00 |
76.00 |
86.00 |
22.50 |
89.40 |
5.20 |
0.30 |
PCA200900-NCRO |
DAS 90 76 |
| 100.00 |
86.00 |
96.00 |
22.50 |
99.40 |
5.20 |
0.30 |
PCA201000-NCRO |
DAS 100 86 |
| 110.00 |
96.00 |
106.00 |
22.50 |
109.40 |
5.20 |
0.30 |
PCA201100-NCRO |
DAS 110 96 |
| 120.00 |
106.00 |
116.00 |
22.50 |
119.40 |
5.20 |
0.80 |
PCA101200-NCRO |
DAS 120 106 |
| 125.00 |
108.00 |
121.00 |
26.50 |
124.40 |
7.20 |
0.80 |
PCA201250-NCRO |
DAS 125 108 |
| 130.00 |
113.00 |
126.00 |
26.50 |
129.40 |
7.20 |
0.80 |
PCA201300-NCRO |
DAS 130 113 |
| 140.00 |
123.00 |
136.00 |
26.50 |
139.40 |
7.20 |
0.80 |
PCA301400-NCRO |
DAS 140 123 |
| 150.00 |
133.00 |
146.00 |
26.50 |
149.40 |
7.20 |
0.80 |
PCA301500-NCRO |
DAS 150 133 |
| 160.00 |
143.00 |
156.00 |
26.50 |
159.40 |
7.20 |
0.80 |
PCA301600-NCRO |
DAS 160 143 |
|
|
|
