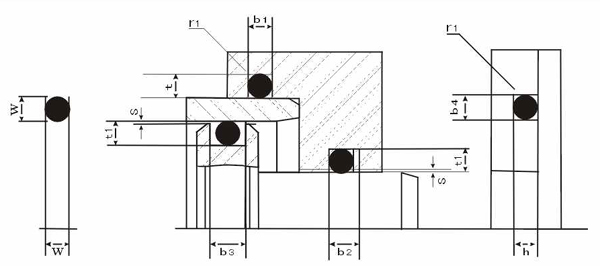

安装图 |
| 截面直径 W |
径向安装 |
轴向安装 |
倒角半径 |
| 沟槽深度 |
沟槽宽度 |
沟槽深度 |
沟槽宽度 |
| 动密封 |
静密封 |
|
|
|
|
|
|
| t1+0.05 |
t+0.05 |
b1+0.2 |
b2+0.2 |
b3+0.2 |
h+0.05 |
b4+0.05 |
r1 |
| 0.50 |
- |
0.35 |
0.80 |
- |
- |
0.35 |
0.80 |
0.20 |
| 0.74 |
- |
0.50 |
1.00 |
- |
- |
0.50 |
1.00 |
0.20 |
| 1.00 1.02 |
- |
0.70 |
1.40 |
- |
- |
0.70 |
1.40 |
0.20 |
| 1.20 |
- |
0.85 |
1.70 |
- |
- |
0.85 |
1.70 |
0.20 |
| 1.25 1.27 |
- |
0.90 |
1.70 |
- |
- |
0.90 |
1.80 |
0.20 |
| 1.30 |
- |
0.95 |
1.80 |
- |
- |
0.95 |
1.80 |
0.20 |
| 1.42 |
- |
1.05 |
1.90 |
- |
- |
1.05 |
2.00 |
0.30 |
| 1.50 1.52 |
1.25 |
1.10 |
2.00 |
3.00 |
4.00 |
1.10 |
2.10 |
0.30 |
| 1.60 1.63 |
1.30 |
1.20 |
2.10 |
3.10 |
4.10 |
1.20 |
2.20 |
0.30 |
| 1.78 1.80 |
1.45 |
1.30 |
2.40 |
3.80 |
5.20 |
1.30 |
2.60 |
0.40 |
| 1.83 |
1.50 |
1.35 |
2.50 |
3.90 |
5.30 |
1.35 |
2.60 |
0.40 |
| 1.90 |
1.55 |
1.40 |
2.60 |
4.00 |
5.40 |
1.40 |
2.70 |
0.40 |
| 1.98 2.00 |
1.65 |
1.50 |
2.70 |
4.10 |
5.50 |
1.50 |
2.80 |
0.40 |
| 2.08 2.100 |
1.75 |
1.55 |
2.80 |
4.20 |
5.60 |
1.55 |
2.90 |
0.40 |
| 2.20 |
1.85 |
1.60 |
3.00 |
4.40 |
5.80 |
1.66 |
3.00 |
0.40 |
| 2.26 |
1.90 |
1.70 |
3.00 |
4.40 |
5.80 |
1.70 |
3.10 |
0.40 |
| 2.30 2.34 |
1.95 |
1.75 |
3.10 |
4.50 |
5.90 |
1.75 |
3.10 |
0.40 |
| 2.40 |
2.05 |
1.80 |
3.20 |
4.60 |
6.00 |
1.80 |
3.30 |
0.50 |
| 2.46 |
2.10 |
1.85 |
3.30 |
4.70 |
6.10 |
1.85 |
3.40 |
0.50 |
| 2.50 |
2.15 |
1.85 |
3.30 |
4.70 |
6.10 |
1.85 |
3.40 |
0.50 |
| 2.62 2.65 |
2.25 |
2.00 |
3.60 |
5.00 |
6.40 |
2.00 |
3.80 |
0.60 |
| 2.70 |
2.30 |
2.05 |
3.60 |
5.00 |
6.40 |
2.05 |
3.80 |
0.60 |
|
| |
| 截面直径 W |
径向安装 |
轴向安装 |
倒角半径 |
| 沟槽深度 |
沟槽宽度 |
沟槽深度 |
沟槽宽度 |
| 动密封 |
静密封 |
|
|
|
|
|
|
| t1+0.05 |
t+0.05 |
b1+0.2 |
b2+0.2 |
b3+0.2 |
h+0.05 |
b4+0.05 |
r1 |
| 2.80 |
2.40 |
2.10 |
3.70 |
5.10 |
6.50 |
2.10 |
3.90 |
0.60 |
| 2.92 2.95 |
2.50 |
2.20 |
3.90 |
5.30 |
6.70 |
2.20 |
4.00 |
0.60 |
| 3.00 |
2.60 |
2.30 |
4.00 |
5.40 |
6.80 |
2.30 |
4.00 |
0.60 |
| 3.10 |
2.70 |
2.40 |
4.10 |
5.50 |
6.90 |
2.40 |
4.10 |
0.60 |
| 3.50 |
3.05 |
2.65 |
4.60 |
6.00 |
7.40 |
2.65 |
4.70 |
0.60 |
| 3.53 3.55 |
3.10 |
2.70 |
4.80 |
6.20 |
7.60 |
2.70 |
5.00 |
0.80 |
| 3.60 |
3.15 |
2.80 |
4.80 |
6.20 |
7.60 |
2.80 |
5.10 |
0.80 |
| 4.00 |
3.50 |
3.10 |
5.20 |
6.90 |
8.60 |
3.10 |
5.30 |
0.80 |
| 4.50 |
4.00 |
3.50 |
5.80 |
7.50 |
9.20 |
3.50 |
5.90 |
0.80 |
| 5.00 |
4.40 |
4.00 |
6.60 |
8.30 |
10.22 |
4.00 |
6.70 |
0.80 |
| 5.33 5.30 |
4.70 |
4.30 |
7.10 |
8.80 |
10.50 |
4.30 |
7.30 |
1.20 |
| 5.50 |
4.80 |
4.50 |
7.10 |
8.80 |
10.50 |
4.50 |
7.30 |
1.20 |
| 5.70 |
5.00 |
4.60 |
7.20 |
8.90 |
10.60 |
4.60 |
7.40 |
1.20 |
| 6.00 |
5.30 |
4.90 |
7.40 |
9.10 |
10.80 |
4.90 |
7.60 |
1.20 |
| 6.50 |
5.70 |
5.40 |
8.00 |
9.70 |
14.40 |
5.40 |
8.20 |
1.20 |
| 6.99 7.00 |
6.10 |
5.80 |
9.50 |
12.00 |
14.50 |
5.80 |
9.70 |
1.50 |
| 7.50 |
6.60 |
6.30 |
9.70 |
12.20 |
14.70 |
6.30 |
9.90 |
1.50 |
| 8.00 |
7.10 |
6.70 |
9.80 |
12.30 |
14.80 |
6.70 |
10.00 |
1.50 |
| 8.40 |
7.50 |
7.10 |
10.00 |
12.50 |
15.00 |
7.10 |
10.30 |
1.50 |
| 9.00 |
8.10 |
7.70 |
10.60 |
13.10 |
15.60 |
7.70 |
10.90 |
2.00 |
| 9.50 |
8.60 |
8.20 |
11.00 |
13.50 |
16.00 |
8.20 |
11.40 |
2.00 |
| 10.00 |
9.10 |
8.60 |
11.60 |
14.10 |
16.60 |
8.60 |
12.00 |
2.50 |
| 12.00 |
11.00 |
10.60 |
13.50 |
16.00 |
18.50 |
10.60 |
14.00 |
2.50 |
|
|
|
